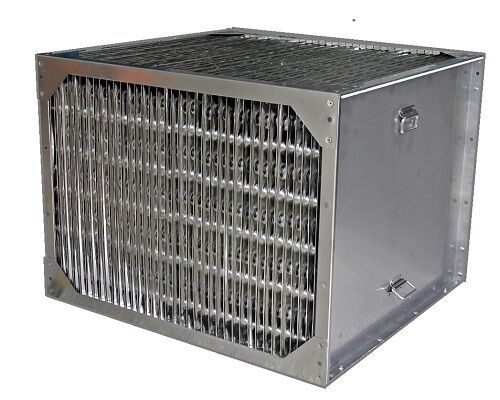

ventilation system crossflow thick stainless steel foils sensible heat exchanger

Sensible heat recovery air to air heat exchanger is used in comfortable air conditioning ventilation system and technical air conditioning ventilation system. Supplying air and exhaust air totally separated, heat recovery in winter and cold recovery in Summer. Two neighbor aluminum foils form a channel for fresh or exhaust air stream. Heat is transferred when the air streams flow crossly through the channels, and fresh air and exhaust air is totally separated.

Sensible Heat Exchanger Main Features

1. aluminum foils cross flow sensible heat exchanger

2. anticorrosion hydrophilic coating foil

3. heat recovery efficiency up to 65%

4. 2-side press shaping, double folded edge.

5. resistance of pressure difference up to 1300Pa

6. under pressure of 700Pa, air leakage less than 0.6%

7. Made by flat aluminum foils of 0.11-0.2mm thickness

Sensible Heat Exchanger Material Type

standard type

Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Max. air temperature 130deg;C, it is suitable for most of the occasion.

high temperature type

Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Sealing material is special and allow the Max. air temperature to be 200deg;C, it is suitable for special high temperature occasion.

Sizes of Sensible Heat Exchanger

Installation of Sensible Heat Exchanger

FAQ

1. Q : What are your main products ?

A : Our mainly produce heat recovery core, heat recovery wheel, energy wheel heat recovery  unit, desiccant rotor, dehumidifer,  etc.

2 .Q: May I get free sample?

A:Normally, our samples for charger are not free. However, the sample fee will be refunded        when customer place bulk orders for that item.

3 .How to got the order?

4. Q: Can you supply OEM or ODM service?

A:We can supply OEM/ODM service of any charger !

5. Q: Which shipment available?

A:Normally, we ship goods by sea, air and express. Special requirement also acceptable.

By sea to your nearest sea port

By air to your nearest air port

By express(UPS,DHL.FEDEX,TNT...) to your door

6. Q : How to guarantee after sale ?

A : We supply 1 year products warranty. If the item is found to be defective in warranty,please

contact us as soon sa possible, so that we can help to solve the problem at fastest rate;

send back to our factory for repairing, or we send new one for you.
